Real Parts. Real Applications.
A 3D printed part is only useful if it works. Here's a look at functional prototypes, replacement parts, fixtures, tooling, and production components we've made for real applications.
A functional mounting component designed to accommodate multiple mounting positions. Printed as a single piece with a deep channel, staggered slots, and a bolted mounting face.

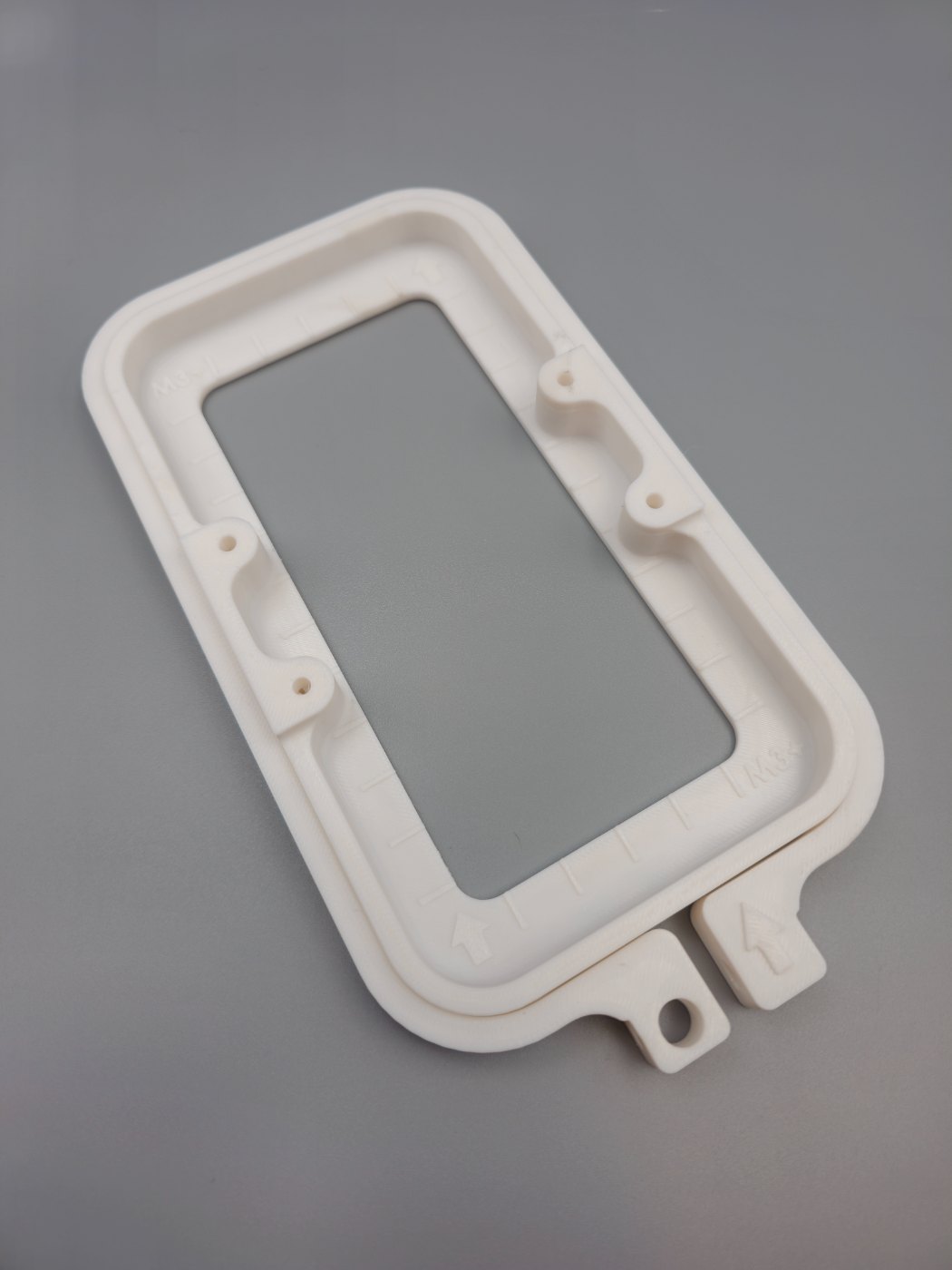

A custom-sized embroidery hoop built for a local business. The frame holds fabric flat and square at a size no off-the-shelf hoop covered.
A functional clamp mount requiring an integrated, working hinge. Printed in materials to withstand UV and outdoors.

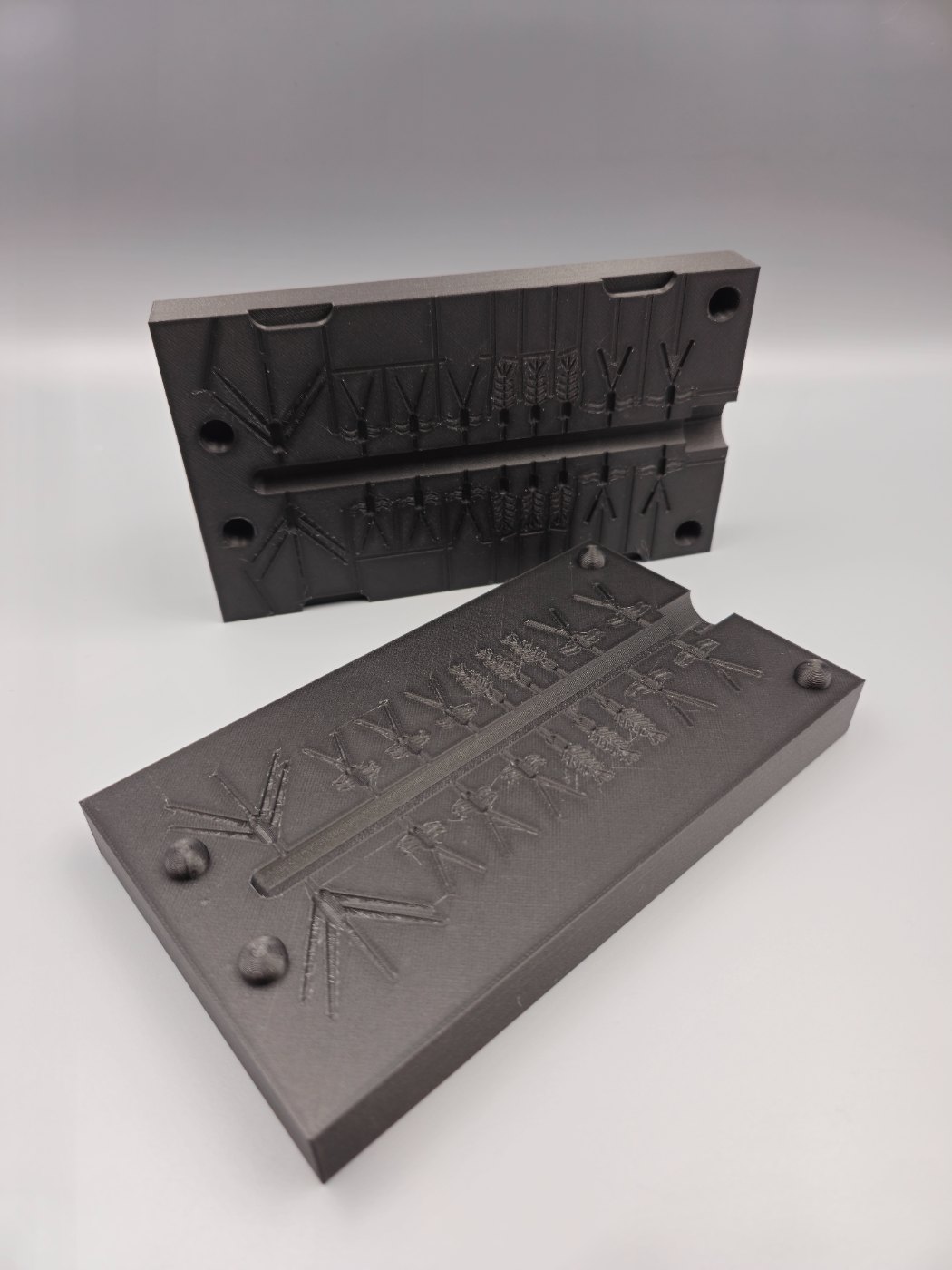

Production tooling for creating multiple parts without investing in conventional tooling. Matched mold halves were printed with alignment bosses and an integrated runner for a low-volume production run.
A custom fog light mount to match up to the OEM contoured bumper. Made to withstand outdoor road conditions.
Have Something to Make?
Send the file, drawing, or details and we'll help figure out the best way to make it.
